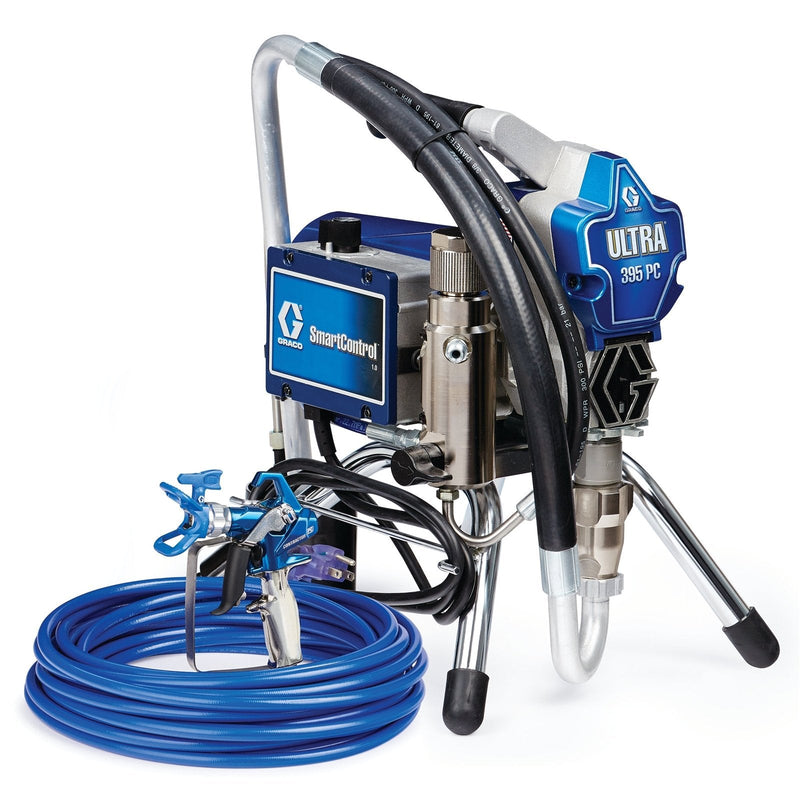

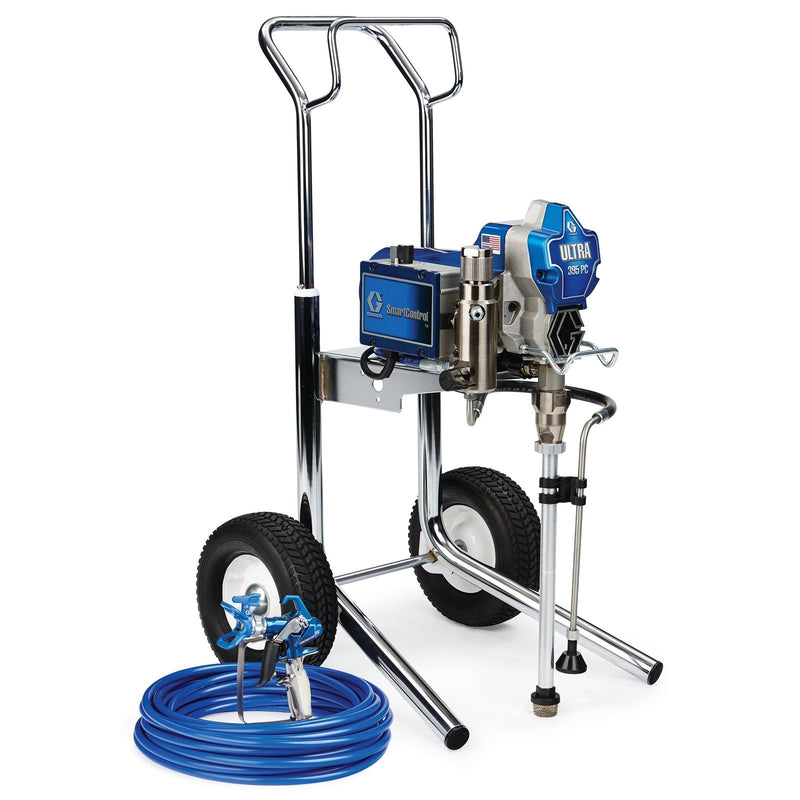

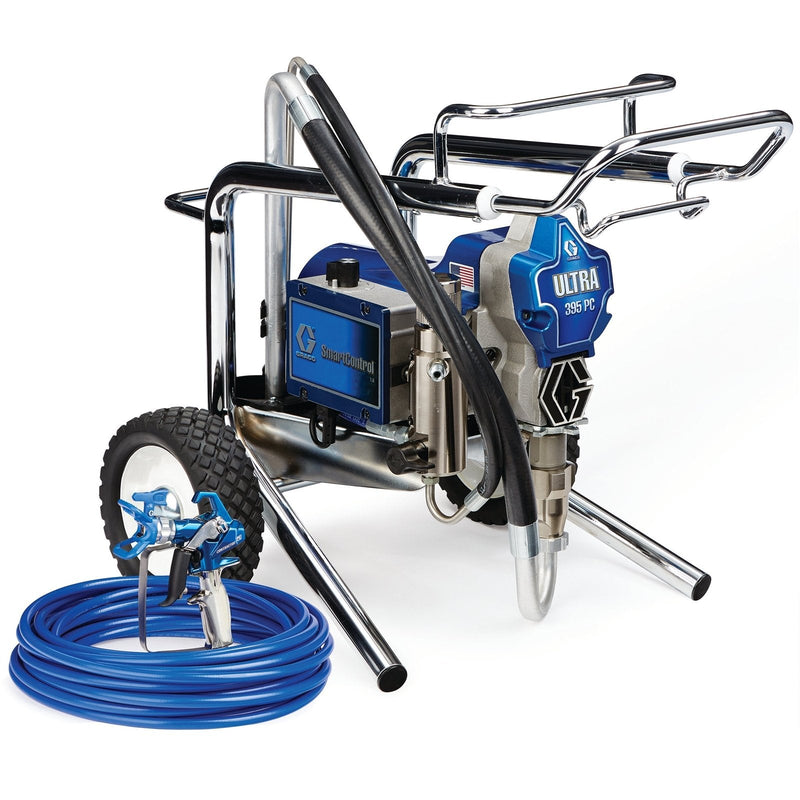

Graco 395 PC Electric Airless Sprayer
$1,549
The performance and versatility of the Ultra 395 PC has made it Graco’s most popular sprayer. SmartControl 1.0 pressure control delivers a consistent spray fan without fluctuation and the proven reliability make it perfect for professionals who spray daily with a wide range of coatings.
Small Size. Large Capability. Built with the same quality as Graco’s Large Electric sprayers, Graco Small Electric airless sprayers deliver exceptional power and performance.
Technical Specifications
Amperage (A) | 15 |
---|---|
Compatible Material | Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics |
Engine Size (HP) | 7/8 |
Engine Size (kW) | 0.65 |
Features | Endurance Chromex Pump, SmartControl 1.0, TEFC DC, Advantage Drive, ProConnect, Easy Out Filter, Contractor PC Gun |
Filter Mesh Size | 60 |
Fluid Outlet Size (in) | 1/4 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Stand |
Frequency (Hz) | 50/60 |
Hose Inlet Diameter (in) | 1/4 |
Includes | Contractor PC Gun, RAC X LTX 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
Maximum Flow Rate (GPM) | 0.54 |
Maximum Sound Pressure Level (dB(A)) | 90 |
Maximum Tip Size (in) | 0.023 |
Maximum Tip Size 1 Gun (in) | 0.023 |
Maximum Working Pressure (MPa) | 22.8 |
Maximum Working Pressure (psi) | 3300 |
Minimum Generator Power (W) | 3000 |
Model | Ultra |
Motor Type | TEFC DC |
Number of Guns | 1 |
Overall Height (in) | 18.5 |
Overall Length (in) | 16 |
Overall Width (in) | 14 |
