Graco 17V781 Fluid Pump Assembly Fits Magnum X5, X7 LTS15 & LTS17 Airless Paint Sprayer

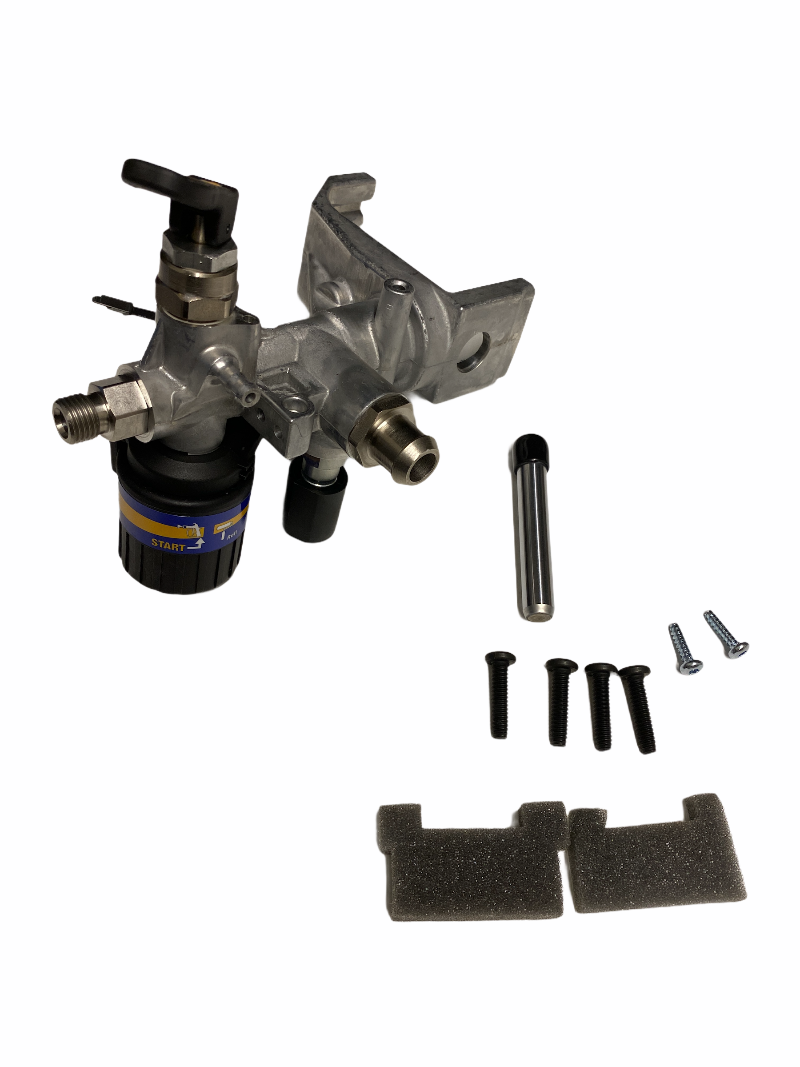

Graco 17V781- Fluid Pump Assembly

Upgrade your sprayer performance with the Graco 17V781 Pump Assembly, a genuine OEM fluid pump section engineered for long-lasting durability and dependable daily use. This high-quality replacement pump is designed specifically for a range of popular Graco airless paint sprayers.

Key Features & Benefits

• Genuine OEM Graco replacement part
• Direct replacement
• Helps restore proper sprayer performance
• Designed for reliable fit and function
• Built for demanding professional spraying applications
• Helps reduce downtime and extend equipment service life
• Recommended for routine maintenance or field repair

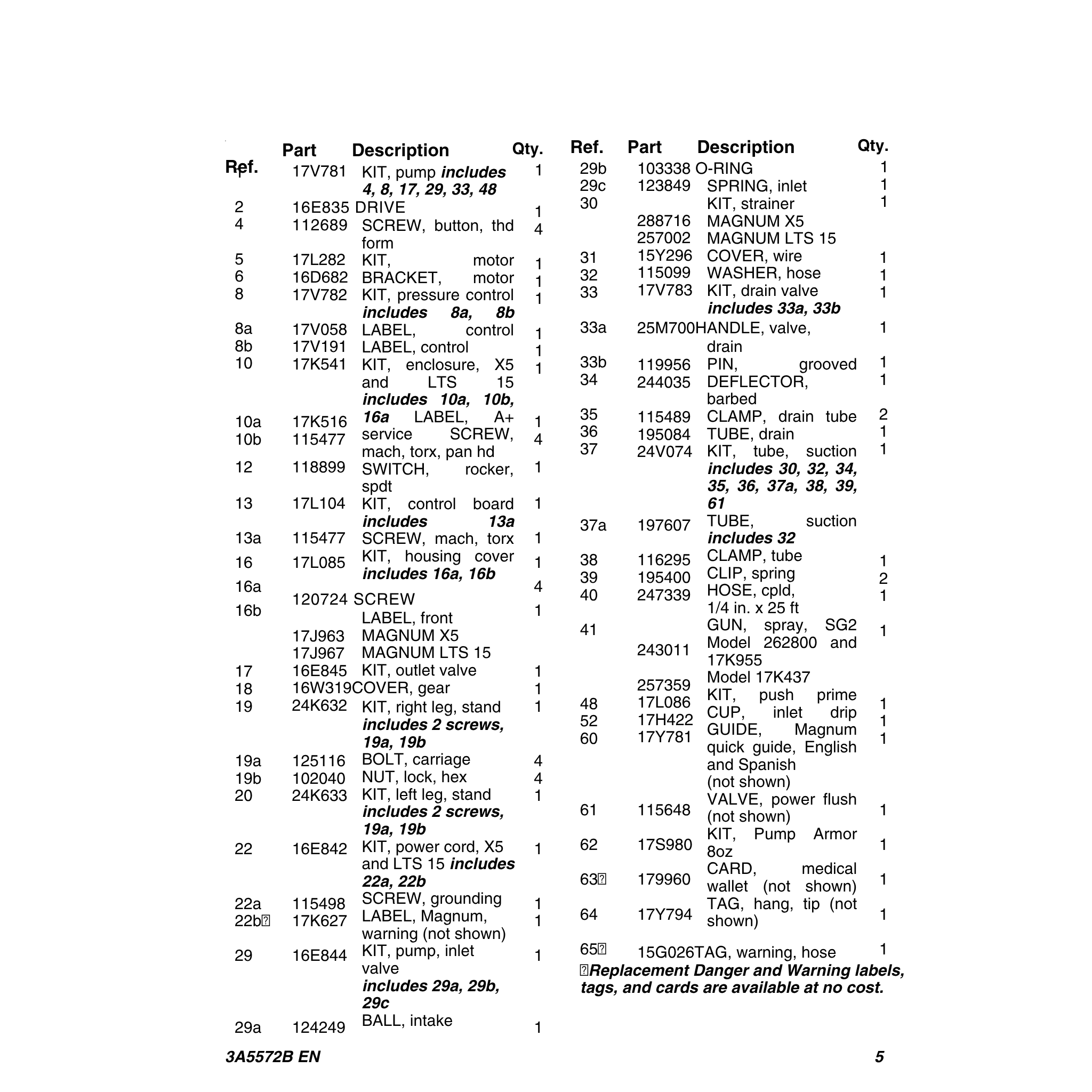

Includes Detailed Repair Diagram

Each fluid pump assembly includes a detailed parts diagram, making it easy to identify components, order replacement parts, and perform routine maintenance.

Product Details

• Brand: Graco
• Part Number: 17V781
• Product Type: Fluid Pump
• Condition: New
• OEM / Aftermarket: GENUINE OEM

Fits The Following Units

• Magnum X5 - 262800

• Magnum X7 - 262805

• Magnum LTS15 - 17K955

• Magnum LTS17 - 17K960

Common Related Repair Parts

• 17V782 - Pressure Control

• 16E845 - Outlet Valve

• 16E844 - Inlet Valve

• 17V783 - Drain Valve

• 17L086 - Push Prime
