Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimize downtime in the field.
Replacement pump for new Ultra 390, 395, 450 and Ultra 490 & 495 XT sprayers
-
Longest Service Life Before Service
- 3X longer life than the closest competitor
- Automatically rotates rod while pumping delivering longest life
-
Endurance Vortext Technology
- Delivers the longest pump life by automatically rotating piston rod to extend pump life
- Virtually eliminates side loading
-
Apply More Paint Per Piston Stroke
- Up to 80% longer piston stroke than competitive models - enhances flow and boosts performance
- Extended piston stroke design increases wear surface and improves hard part life
Click Here To Download Manual
Fits The Following Units:
390 Ultra # 25F502, 25F501
390 Ultimate # 826312, 826311
395 Ultra # 25F505, 25F504, 25F503
395 Ultimate # 826315, 826314, 826313
450 Ultra # 25F805, 25F507, 25F506
450 Ultimate #826318, 826317, 826316
490 XT Ultra # 19D521, 19D520, 19D519
490 XT Ultimate # 826286, 826285, 826284
495 XT Ultra # 19D524, 19D523, 19D522
495 XT Ultimate # 826289, 826288, 826287

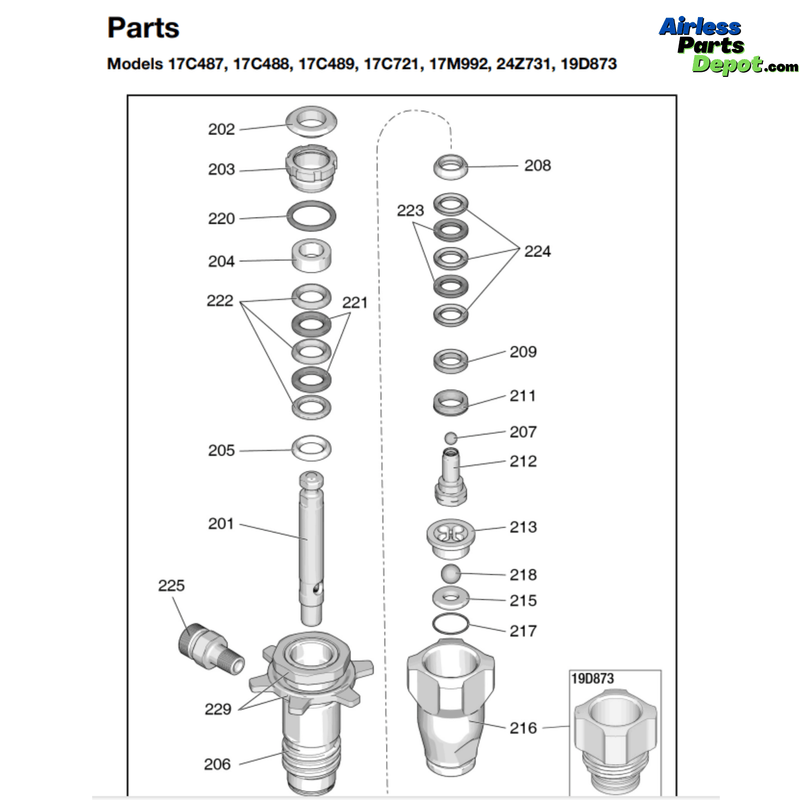

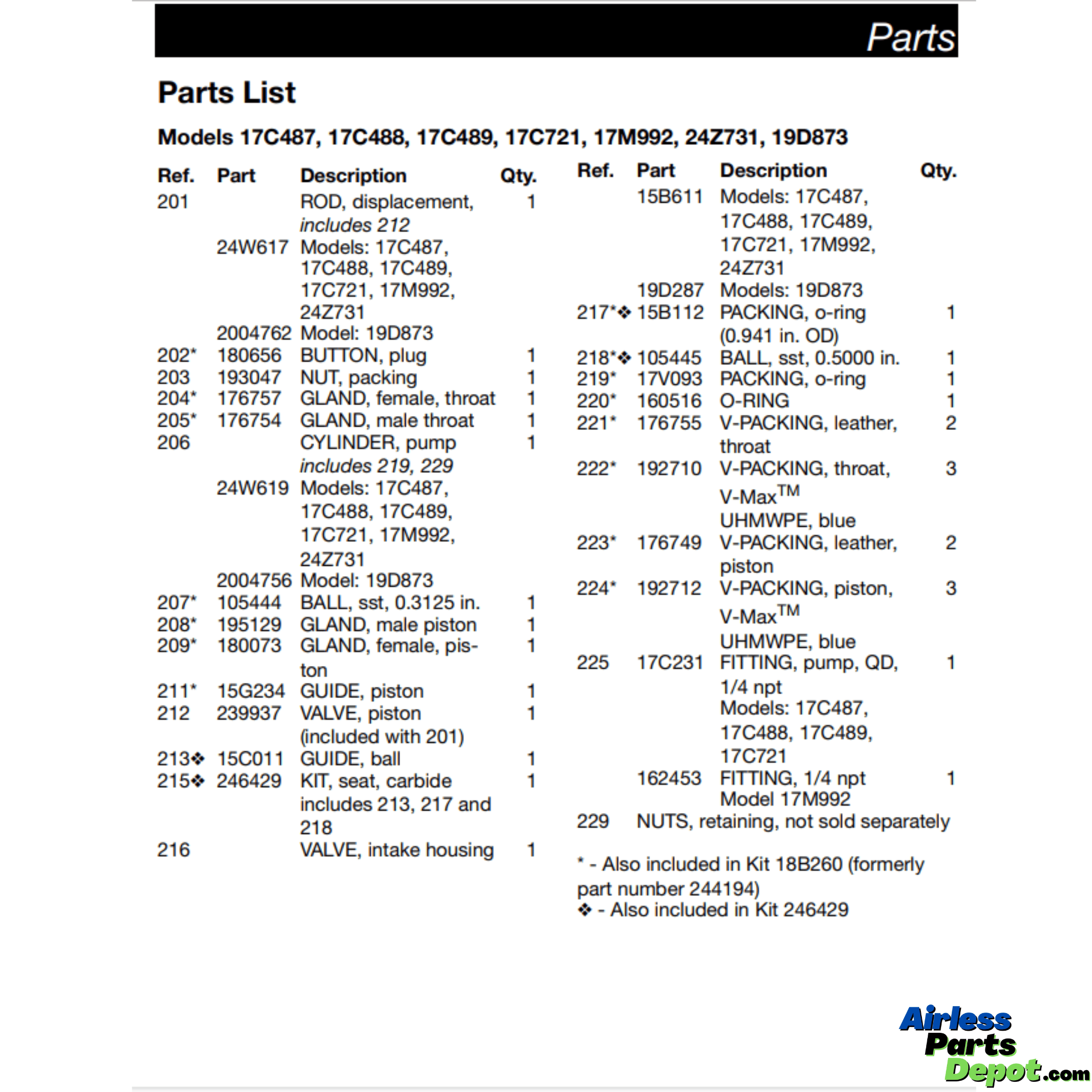

Common Repair Parts
19D873 Fluid Pump
