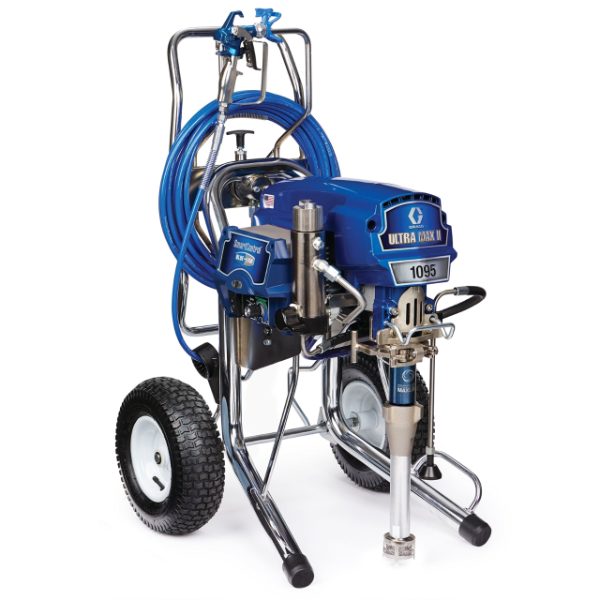

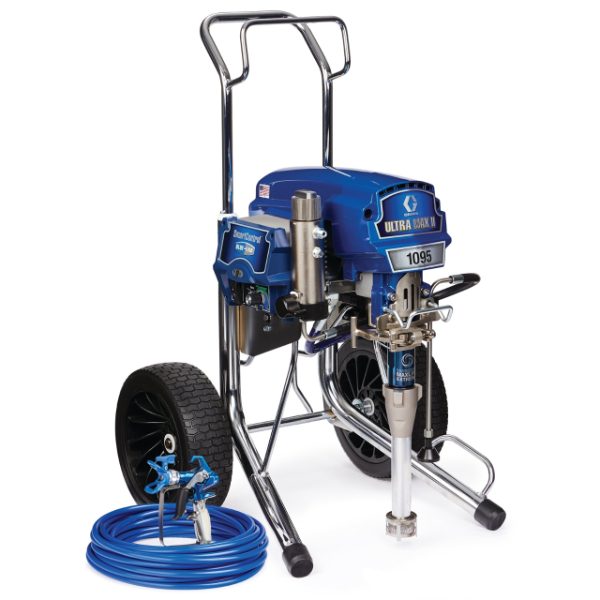

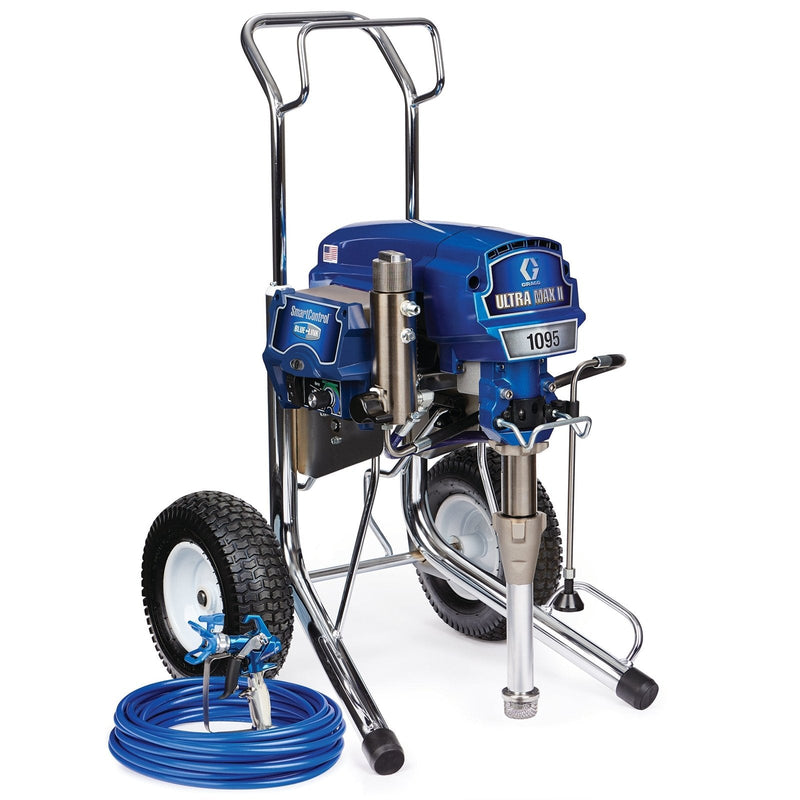

The Ultra Max II 1095 Standard Series electric airless sprayer has a 2.4 hp brushless DC motor to spray up to 1.2 gallons per minute and includes the industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the lightweight Contractor PC gun and more.
Everyday Reliability. Standard Series large electric airless sprayers are the industry standard for residential and commercial contractors looking for proven reliability to spray a wide variety of coatings with a variety of tip sizes on larger jobs.
| Amperage (A) | 15 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler, Dry Fall, Elastomerics |
| Engine Size (HP) | 2.4 |
| Features | Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LTX 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (GPM) | 1.2 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.035 |
| Maximum Tip Size 1 Gun (in) | 0.035 |
| Maximum Tip Size 2 Guns (in) | 0.027 |
| Maximum Tip Size 3 Guns (in) | 0.021 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 3 |
| Overall Height (in) | 38.5 |
| Overall Length (in) | 26 |
| Overall Width (in) | 24 |
Manual 3A6342F, 695/795/1095/1595/Mark IV, V, II HD, Electric Airless Sprayer
Repair Parts List
Graco Ultra Max II 1095 Standard Series Electric Airless Sprayer
