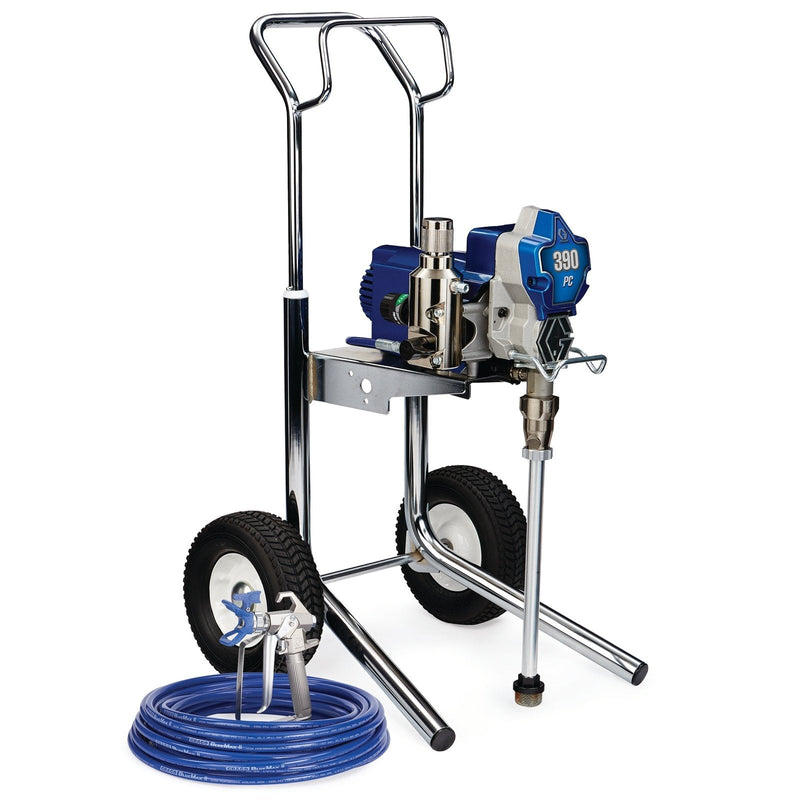

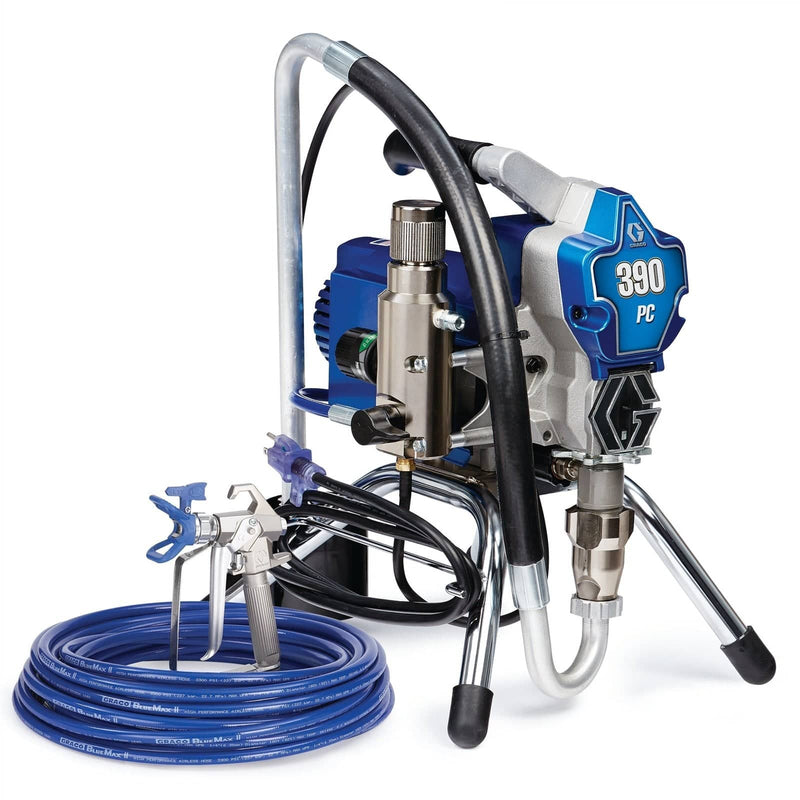

The 390 PC Stand is a solid workhorse built for the professional just “starting out.” LightwThe 390 PC Stand is a solid workhorse built for the professional just “starting out.” Lightweight and portable, it's easy to lift and carry. The 390 PC is the ideal sprayer for residential jobs, and is the best value in small electric sprayers. Eight and portable, it's easy to lift and carry. The 390 PC is the ideal sprayer for
Technical Specifications
| Amperage (A) | 13 |
|---|---|
| Compatible Material | Acrylics, Enamel, Lacquer, Latex, Stains |
| Compatible Replacement Pump | 17C487 |
| Cycles Per Gallon | 700 |
| Engine Size (HP) | 0.625 |
| Features | Endurance Chromex Pump, Advantage Drive, ProConnect, Easy Out Filter |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Includes | FTx Gun, RAC X LTX 515 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (GPM) | 0.47 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Motor Type | DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 18.5 |
| Overall Length (in) | 16 |
| Overall Width (in) | 14 |
| Phase | 1 |
| Power Rating (HP) | 0.625 |
| Power Rating (W) | 466 |
| Power Rating (kW) | 0.47 |
| Power Source | Electric |
| Pump Mount Type | ProConnect |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened Steel |
| Pump Type | Endurance |
| Recommended Annual Usage | Up to 50 gallons per week |
| Series | 390 PC |
| Sound Power Level (dB(A)) | 100 |
| Sound Pressure Level (dB(A)) | 90 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Weight (lb) | 34 |
Manual 334567S, 390pc Electric Airless Operation & Repair
Repair Parts List
Graco 390 PC Electric Airless Sprayer
