The Ultra Max II 495 PC Pro airless sprayer brings the leading technology and performance of Graco’s larger Ultra Max II models into a compact design that is lightweight (34 lbs) and easy to transport while providing more torque, even pressure delivery and faster cleaning to finish jobs faster.
Increased Productivity. Unmatched Reliability. Graco's Midsize Electric airless sprayers make it easier to get more work done in a day with increased flow and production rates.
Technical Specifications
| Amperage (A) | 15 |
|---|---|
| Compatible Material | Lacquer, Stains, Interior Latex, Exterior Latex, Enamel, Acrylics, Oil-Based Primer |
| Engine Size (HP) | 1.2 |
| Engine Size (kW) | 0.9 |
| Features | Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LTX 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (GPM) | 0.6 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Maximum Tip Size (in) | 0.025 |
| Maximum Tip Size 1 Gun (in) | 0.025 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3750 |
| Number of Guns | 1 |
|---|---|
| Overall Height (in) | 18.5 |
| Overall Length (in) | 16 |
| Overall Width (in) | 14 |
| Phase | 1 |
Manual 3A6491K, 490/495/595/650/395EU, Electric Airless Sprayer
Repair Parts List

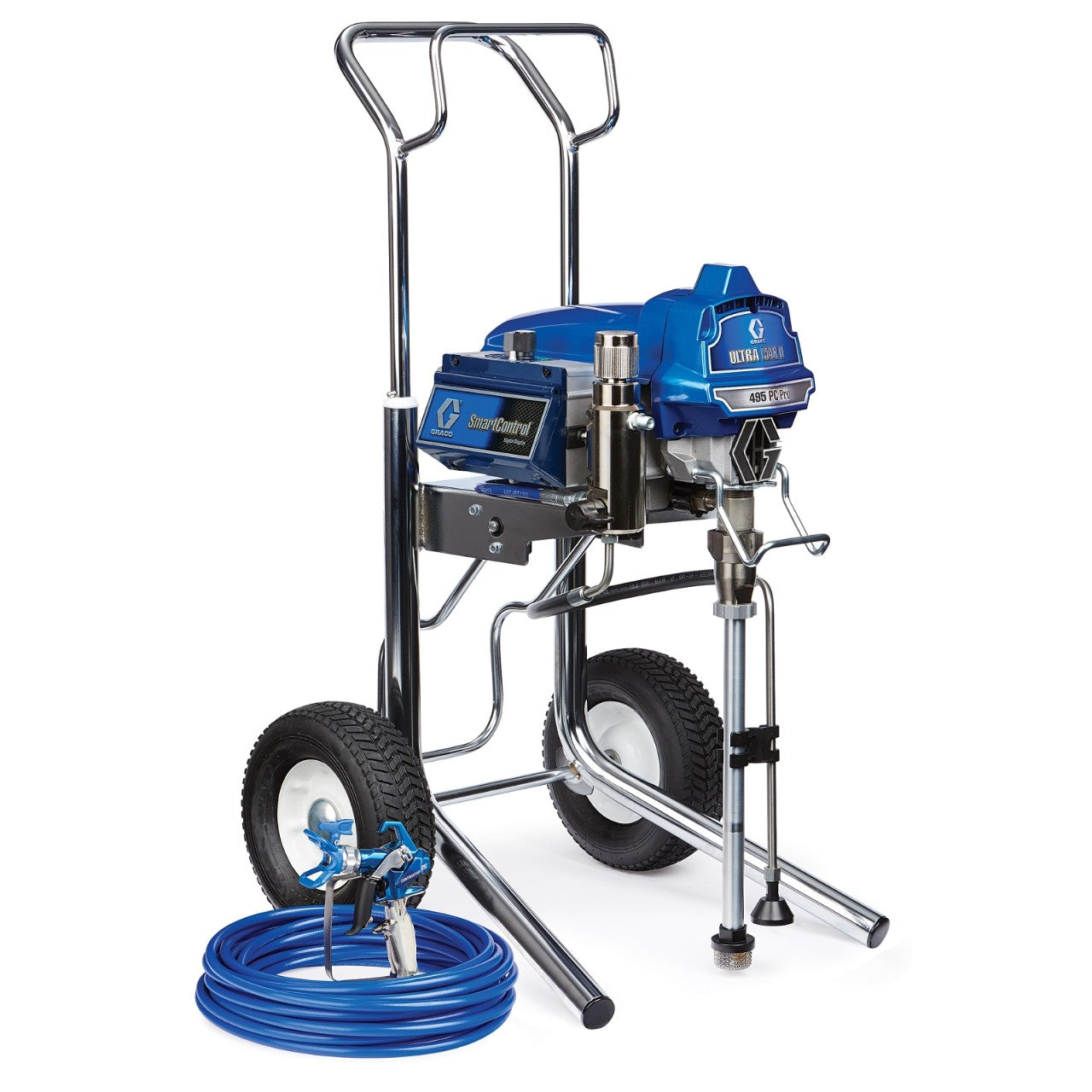

Graco Ultra Max II 495 PC Pro Electric Airless Sprayer
Sale price$2,229.00
Choose options
Graco Ultra Max II 495 PC Pro Electric Airless Sprayer
Sale price$2,229.00
