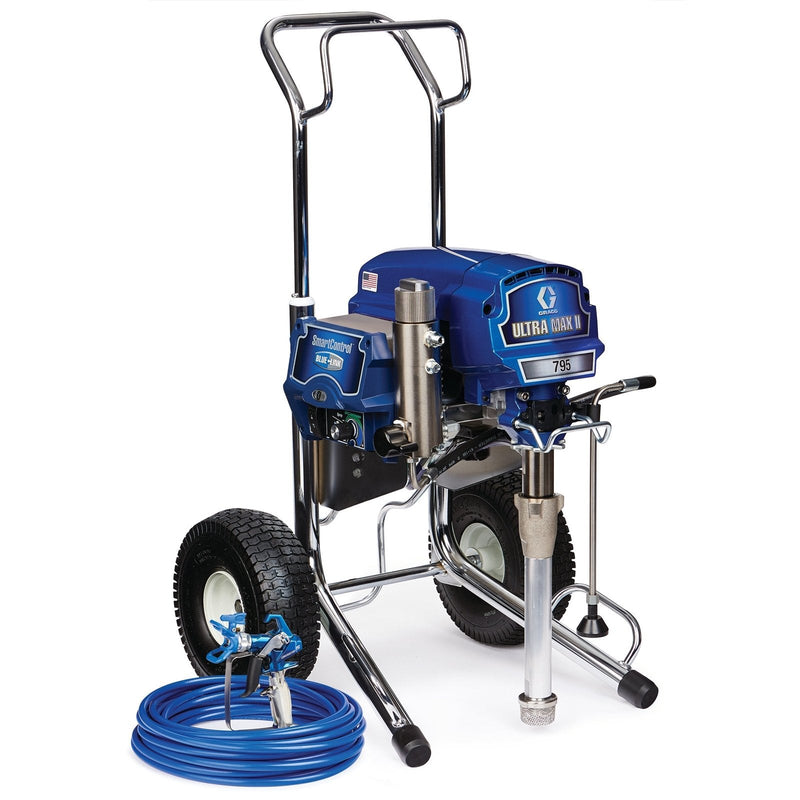

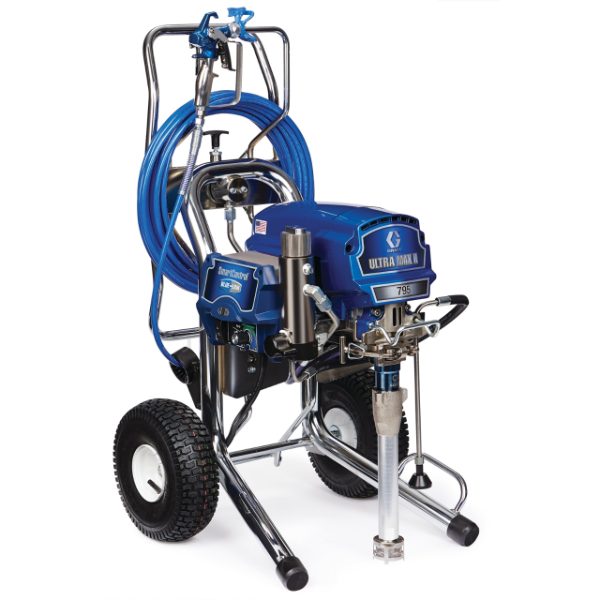

The Ultra Max II 795 Standard Series electric airless sprayer has a 2.2 hp brushless DC motor to handle multiple guns and includes the industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the lightweight and easy-to-use Contractor PC gun and more.
Everyday Reliability. Standard Series large electric airless sprayers are the industry standard for residential and commercial contractors looking for proven reliability to spray a wide variety of coatings with a variety of tip sizes on larger jobs.
Technical Specifications
| Amperage (A) | 15 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler |
| Engine Size (HP) | 2.2 |
| Features | Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LTX 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (GPM) | 1.1 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.033 |
| Maximum Tip Size 1 Gun (in) | 0.033 |
| Maximum Tip Size 2 Guns (in) | 0.025 |
| Maximum Tip Size 3 Guns (in) | 0.019 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 3 |
| Overall Height (in) | 38.75 |
| Overall Length (in) | 26 |
| Overall Width (in) | 22.5 |
Manual 3A6342F, 695/795/1095/1595/Mark IV, V, II HD, Electric Airless Sprayer
Repair Parts List
