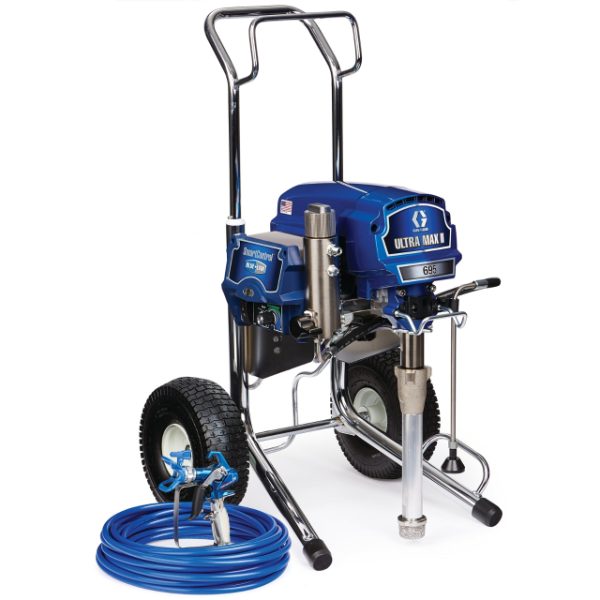

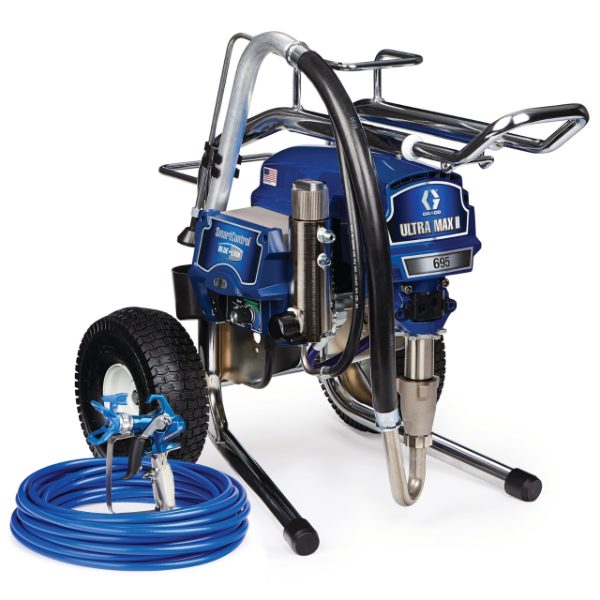

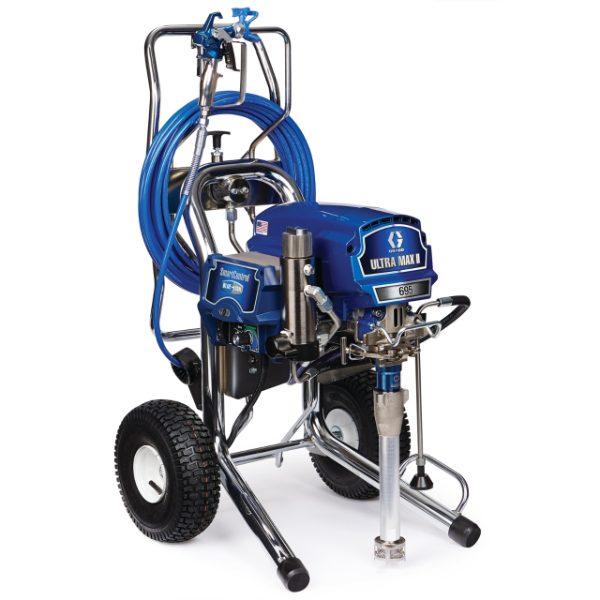

The Ultra Max II 695 ProContractor Series provides reliability and performance with a 2.0 hp brushless DC motor, Endurance Vortex MaxLife Pump and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.
Work Smarter, Finish More Jobs. ProContractor Series electric airless sprayers are built specifically for professional remodeling and repainting contractors looking to increase the number of larger jobs they spray and the performance to spray a wide variety of coatings with a variety of tip sizes.
Technical Specifications
| Amperage (A) | 15 |
|---|---|
| Compatible Material | Interior Latex, Exterior Latex, Oil-Based Primer, Acrylics, Block Filler |
| Engine Size (HP) | 2 |
| Features | Endurance Chromex Pump, SmartControl 4.0, BlueLink System, MaxPower Brushless, Advantage Drive, FastFlush 2, Easy Out Filter, Heavy-Duty Prime Valve, WatchDog, Contractor PC Gun |
| Filter Mesh Size | 60 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Lo-Boy |
| Frequency (Hz) | 50/60 |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | Contractor PC Gun, RAC X LTX 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (GPM) | 0.95 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.031 |
| Maximum Tip Size 1 Gun (in) | 0.031 |
| Maximum Tip Size 2 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Ultra Max II |
| Motor Type | MaxPower |
| Number of Guns | 2 |
| Overall Height (in) | 27.5 |
| Overall Length (in) | 37 |
| Overall Width (in) | 22.5 |
Manual 3A6342F, 695/795/1095/1595/Mark IV, V, II HD, Electric Airless Sprayer
Repair Parts List
